Seaspy Cable SS-HDSC-1 cable for use with HDSC Sensor Camera, UVL-3 Light and Seaspy Controller SS-HDI

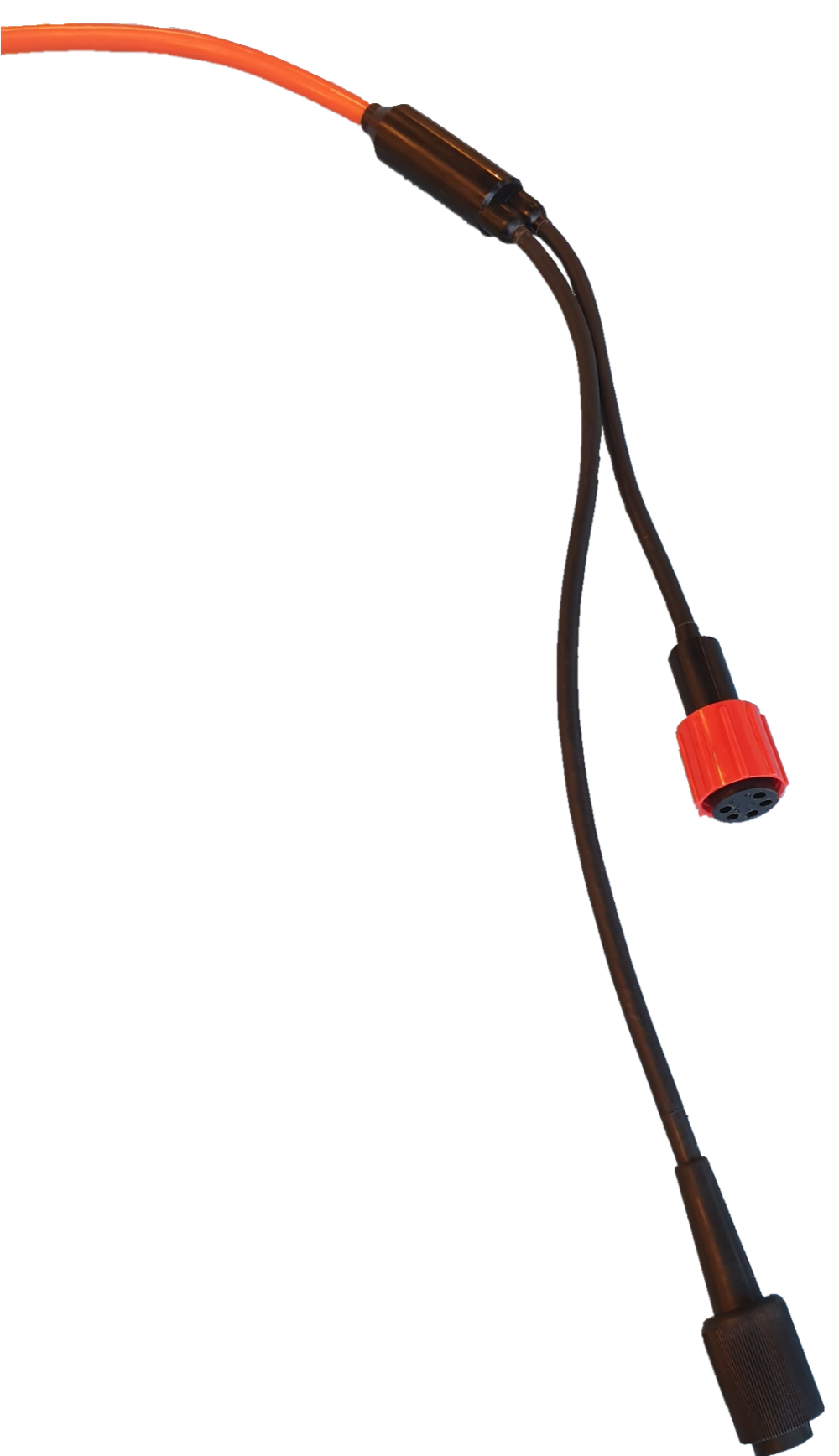

Seaspy cable is manufactured to Submertec specifications and has proved to be very durable over many years of service. The cable incorporates a 360 Kg strain relief and has an outer jacket of orange Polyurethane to a diameter of approx 13 mm. Subsea end of the cable has a moulded breakout into two connectors for the camera and light:

  • Camera connector is a Seacon wet mateable type IL-5F

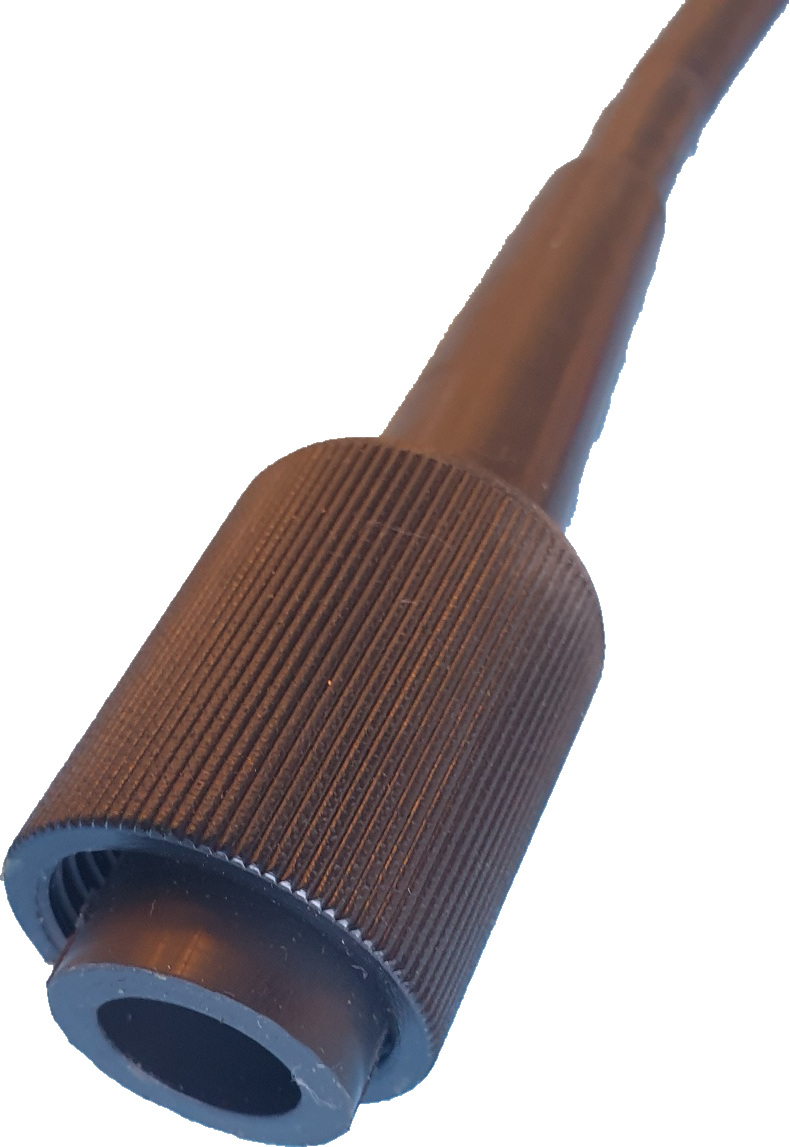

  • Light connector is a Seacon rubber moulded type RMG-3F

Suitable for use with Seaspy HDSC Sensor camera and UVL-3 light.

The underwater end of the cable is completely waterproof and can be fully immersed in water for indefinite periods.

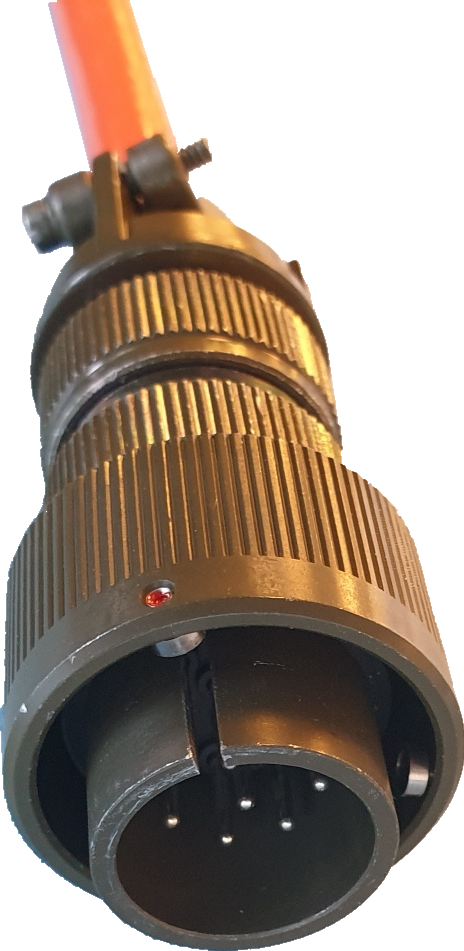

The surface end of the cable is fitted with a 10 pin Cannon quick lock CA-3106E18-1PB connector NOTE: The surface end Cannon connector is NOT waterproof and this end of the cable must remain dry at all times.


RMG-3F RMG-3F
Cannon CA-3106E18-1PB Cannon CA-3106E18-1PB
