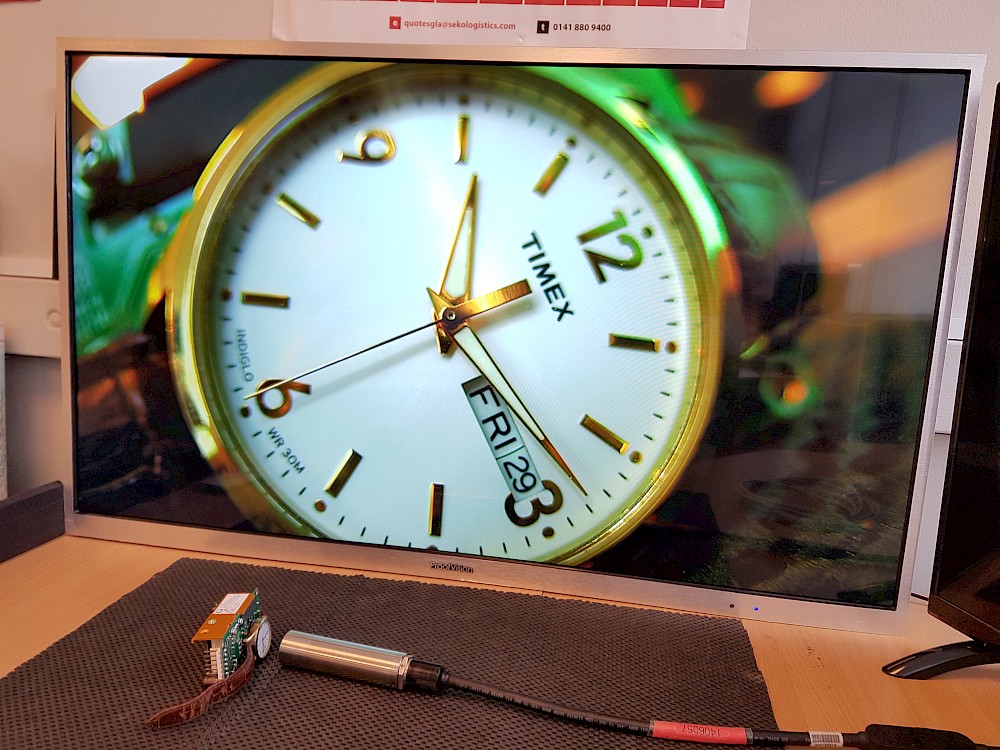

Seaspy Model HD-FC Divers Helmet Camera with 1080p video
This 1080p HD video camera with wide angle lens has been developed to be small and light enough for many applications that require a high performance camera including mounting to a divers helmet.
Machined from solid Titanium, the housing has immunity to corrosion during long term immersion in seawater and with a scratch resistant window this camera is well suited to the demands of commercial diving.
A built in voltage regulator alows operation from supplies ranging between 13 and 30 volts dc.
The HD-TVI video signal provides exceptional picture quality over cables in excess of 200 metres long. (Optionally, the camera can be supplied with an HD-AHD video output in place of HD-TVI)
Externally, the HD-FC is identical to the DHC-5 and can use the same underwater cables (with slight wiring change in Amphenol connector) although display and recording will require HD-TVI specific equipment. (soon to be a Submertec option)

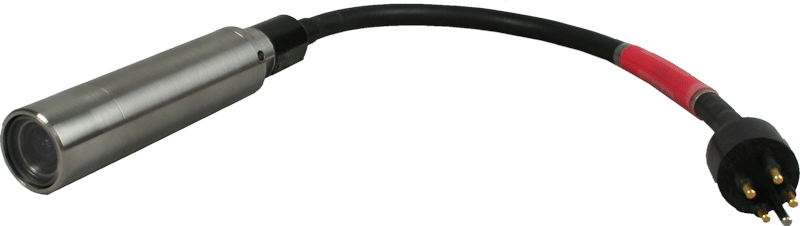

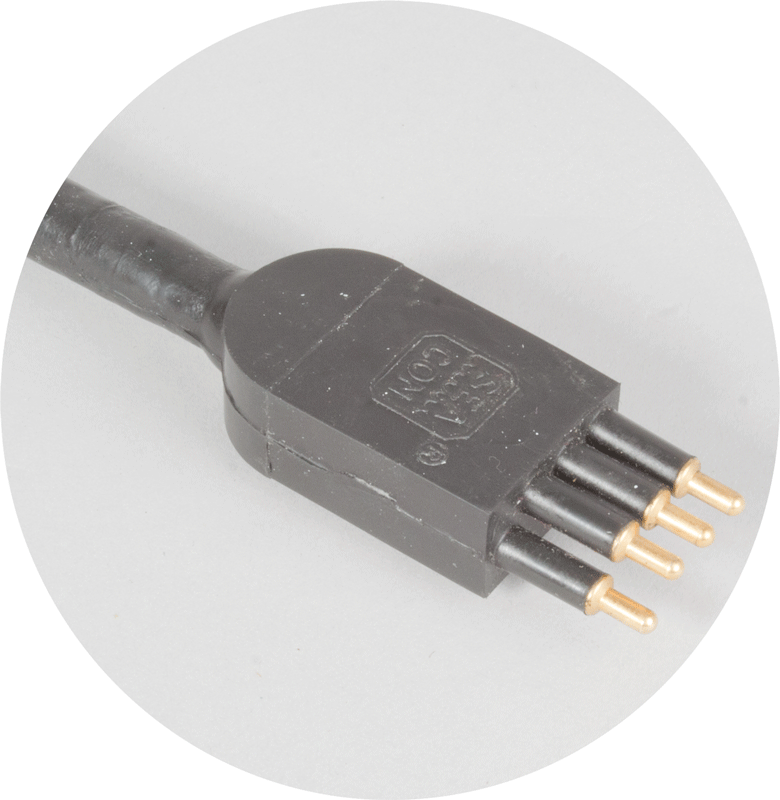

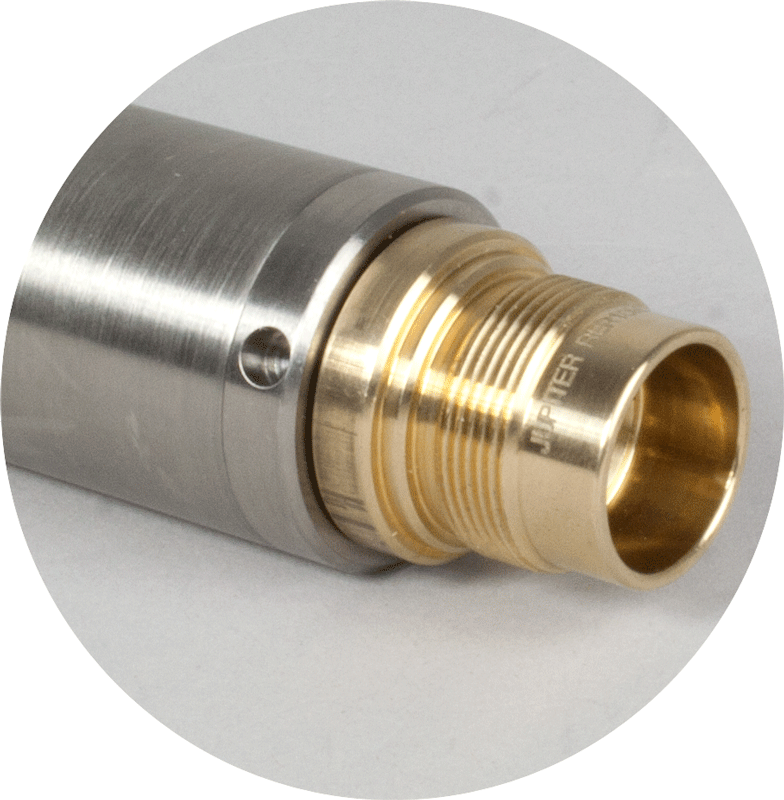

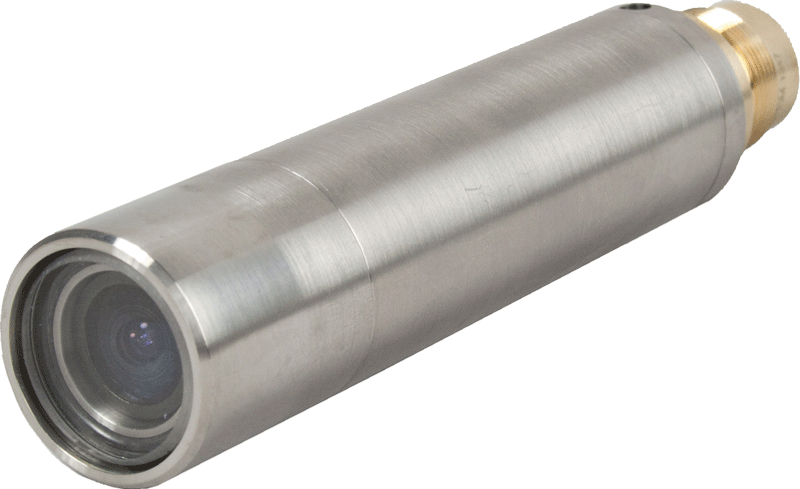

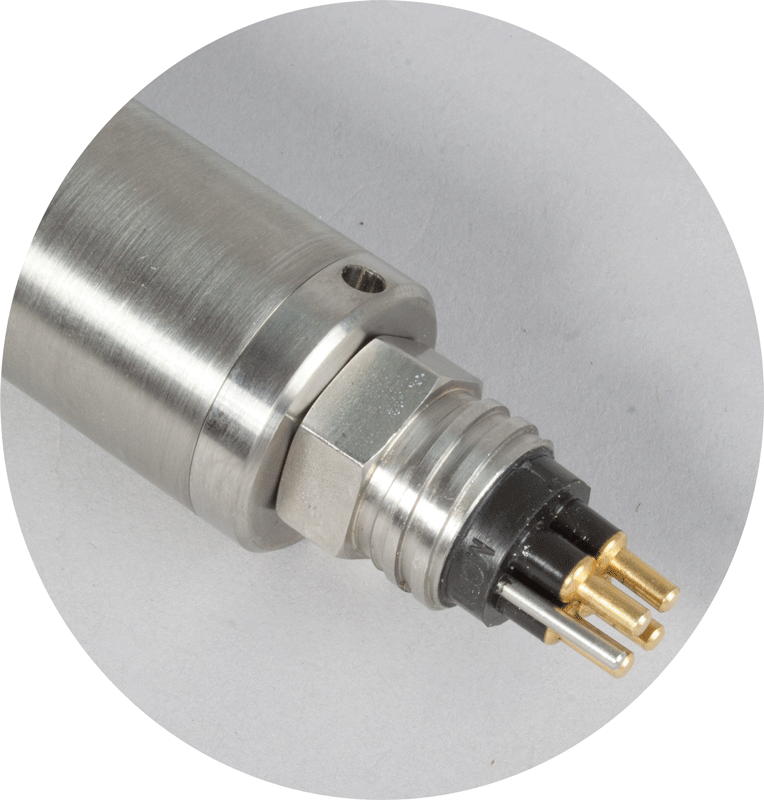

Provision has been made in the design to accommodate a variety of small underwater connectors including Jupiter size 10, MCBH4 or a moulded penetrator and tail to LPIL4M or IL4M etc.

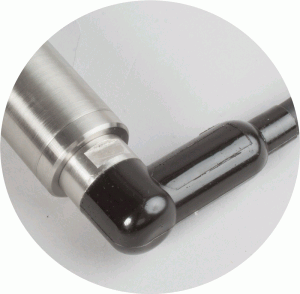

If disconnection at the camera is not required, the underwater cable can be moulded directly to a straight or right angled penetrator
HD-FC SPECIFICATION
Dimensions | 29mm diameter (1.2 in), 115mm long (4.5 in) |
Weight | 182gm (6.5oz) in air 106gm (3.7lb) in water |
Depth Rating | 305 Metres (1000 feet) |
Material | Titanium |
Resolution | 1080p HD video @ 25 or 30Hz |
Light required | 1 Lux minimum light |
Field of View75 | degrees horizontal in water |
Power Supply | 13 to 30 volts dc @ 100mA |
Video Output | HD-TVI |
Video option | HD-AHD |
Connector options | Most connectors can be supplied on request |
