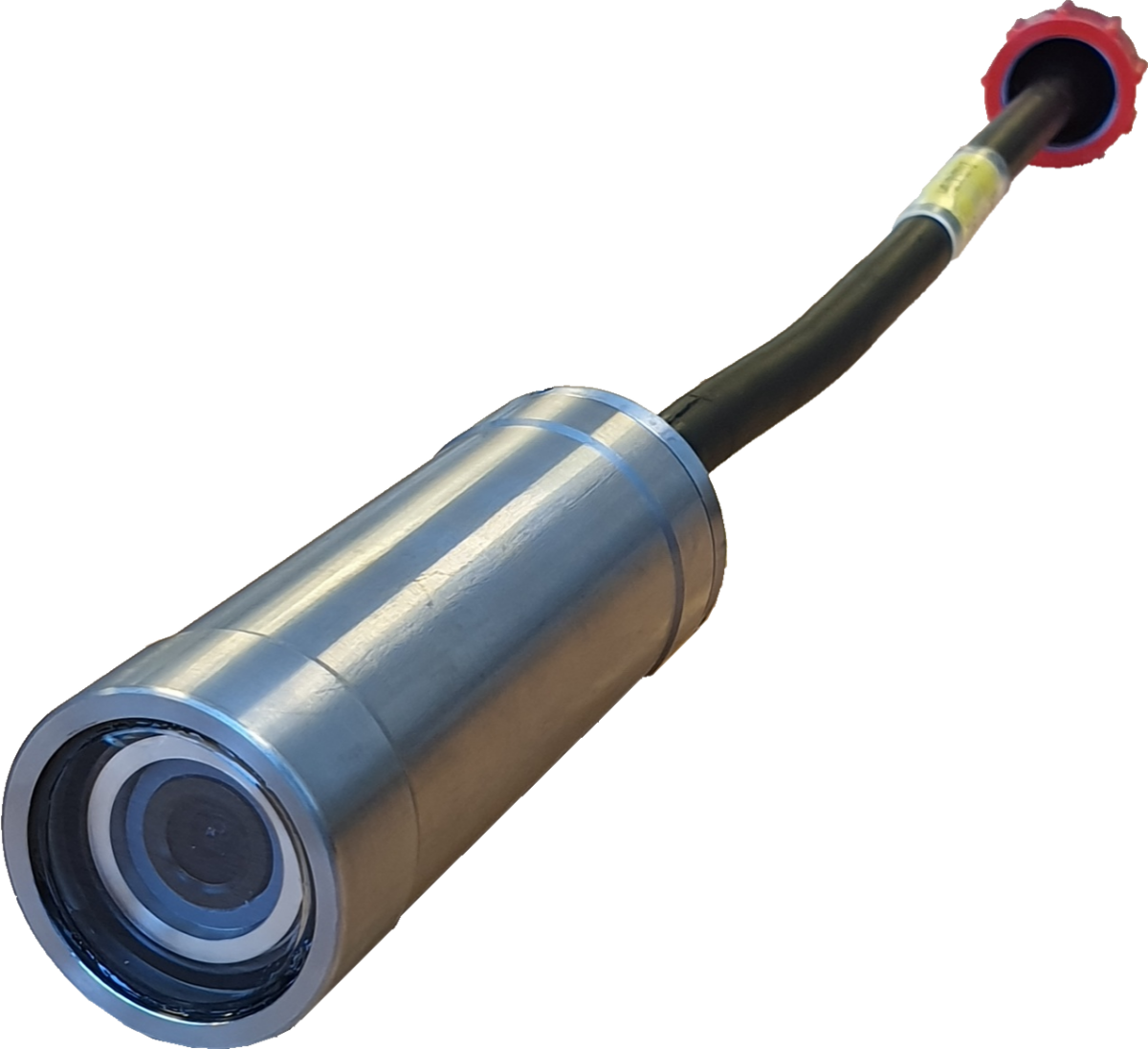

Seaspy Model HD-SC Sensor Camera with 1080p video

This new HD underwater video camera has integrated sensors to allow depth, heading and attitude information to be overlayed onto the video recording when used with the Seaspy Model SS-HDI control unit.

The camera has been developed to be small and light enough for mounting to a divers helmet to provide the dive supervisor with enhanced safety information.

A 100m depth range, high accuracy depth sensor is fitted and calibrated to allow depth to be monitored to within a few centimetres. This can be displayed in metres or feet.

Attitude sensors provide Magnetic Heading, Pitch and Roll information which can be selected and displayed on screen as required.

The HD-TVI video signal provides exceptional 1080p HD picture quality over cables in excess of 200 metres long. (Optionally, the camera can be supplied with an HD-AHD video output in place of HD-TVI)

Machined from solid Titanium, the housing has immunity to corrosion during long term immersion in seawater and with a scratch resistant window this camera is well suited to the demands of commercial diving.

As standard, a wet-mateable 5 pin connector is moulded to a short tail from a penetrator in the rear of the camera housing. If disconnection at the camera is not required, the underwater cable can be moulded directly to a straight or right angled penetrator


HD-SC SPECIFICATION

Dimensions 38mm diameter (1.5in), 101mm long (4in)
Weight 350gm in air
Depth Rating 100 Metres
Material Titanium
Resolution 1080p HD video @ 25 or 30Hz
Light required 1 Lux minimum light
Field of View75  degrees horizontal in water
Power Supply 15 volts dc @ 200mA
Video Output HD-TVI
Video option HD-AHD
Connector options Other connectors can be supplied on request



Not sure what you need?

Contact us with your requirements!
