Spyball Model SCPI-B – Inspection Spyball Control Unit

  • 15 inch Sunlight Viewable Colour LCD Display
  • Digital Video Recorder—Internal SSD, & external USB
  • Record Still Photos during record or playback
  • Video Text overlay using USB Keyboard
  • Store unlimited pages of text for overlay
  • Date and Time overlay
  • Audio input for Microphone
  • Built in audio playback speaker.
  • Composite video output
  • Joystick for proportional control of camera angle
  • Weatherproof when closed.

The 15 inch colour display mounted in the case lid behind a scratch resistant Polycarbonate window displays a clear and bright image from the Spyball camera even in bright sunlight.

Panel facias are durable, wipe clean Polycarbonate membranes with control buttons and indicators clearly marked and logically grouped for ease of operation.

The Digital Video Recorder developed by Submertec saves up to 100 hours of best quality video and still photo files to the built in Solid State Drive with simultaneous export to USB memory. (up to 700 hours at lower quality)

Menu controls are provided for playback, export from SSD, delete, file name, file number, record quality, date / time format etc.

The DVR and Text menu system can be displayed in English, French or Spanish with other languages added as an option.

Spyball control now includes variable intensity LED lighting.

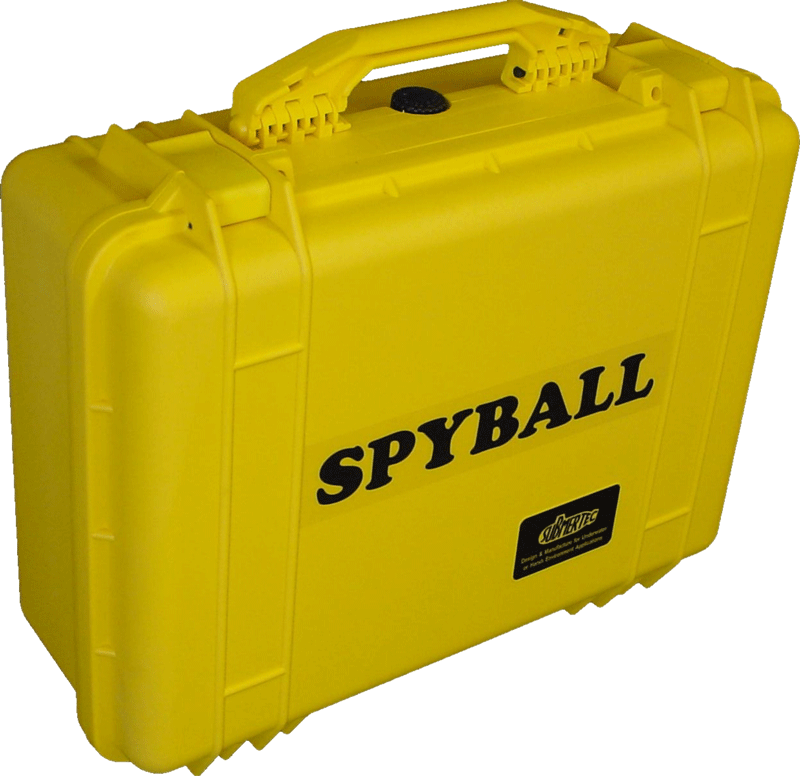

Dimensions 490mm wide, 394mm deep and 190mm high (when closed)
Weight 11Kg (24lb)
Power Supply 95 or 250 VAC at 50 or 60 Hz / 3Amps
Display 15in sunlight viewable colour active matrix TFT LCD
Controls Joystick, zoom, focus, lights, lasers, DVR, Text & Display
DVR Files Record AVI and JPG files to SSD & USB storage
DVR Storage Built in 240 GB SSD. Option for larger capacity
Video Composite Video out or in via BNC connectors
