SEASPY Model SS-HDI Inspection Control Unit

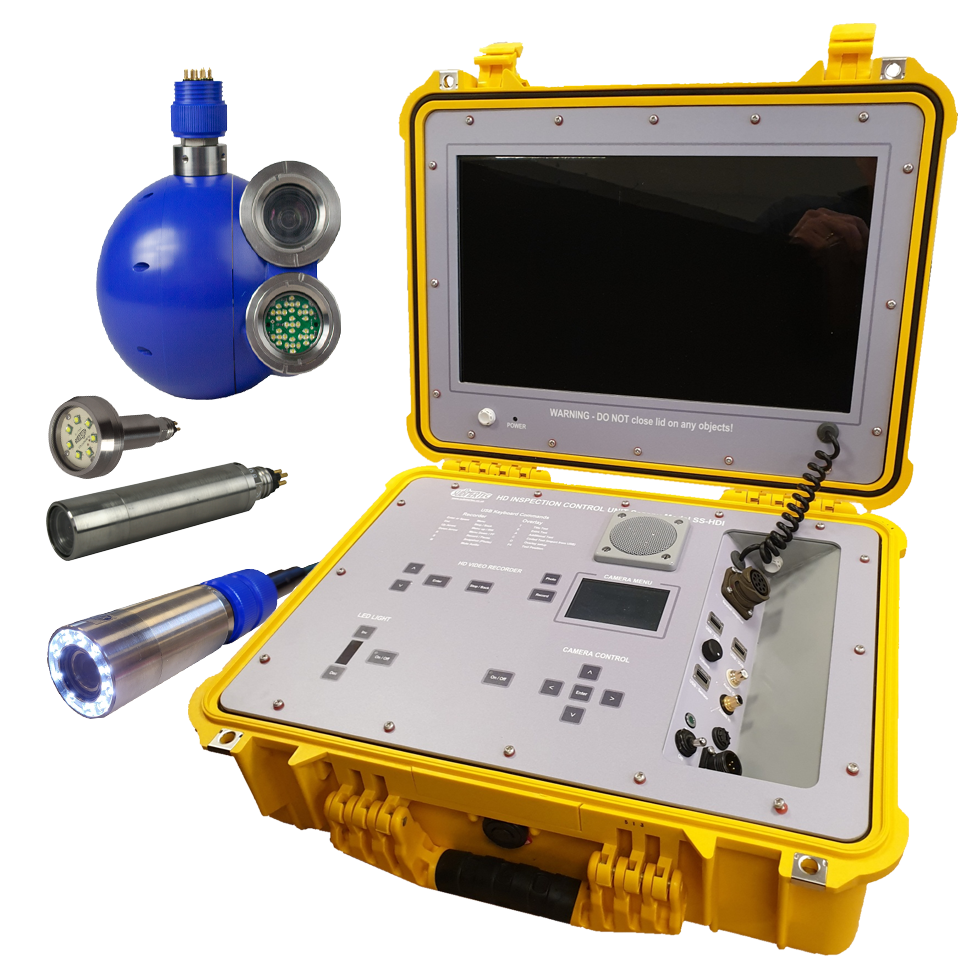

Portable Control Unit Model SS-HDI has been developed to operate with various HD and CVBS underwater video cameras including the new Seaspy SS-HDSC Sensor camera and HD Super Spyball. It also provides power to underwater LED lights.
On start-up, the controller detects the camera type fitted and configures the power supply and control arrangement to suit the camera and LED light.
The built in Digital Video Recorder (DVR) stores 1080p MP4 video and 1920x1080 JPG photos to internal 256GB memory with simultaneous recording to removable USB Memory if required.
A 17.3inch colour active matrix TFT-LCD sunlight viewable display mounted in the case lid behind a scratch resistant Polycarbonate window displays a clear and bright HD image from the camera together with playback of recorded video and photos.

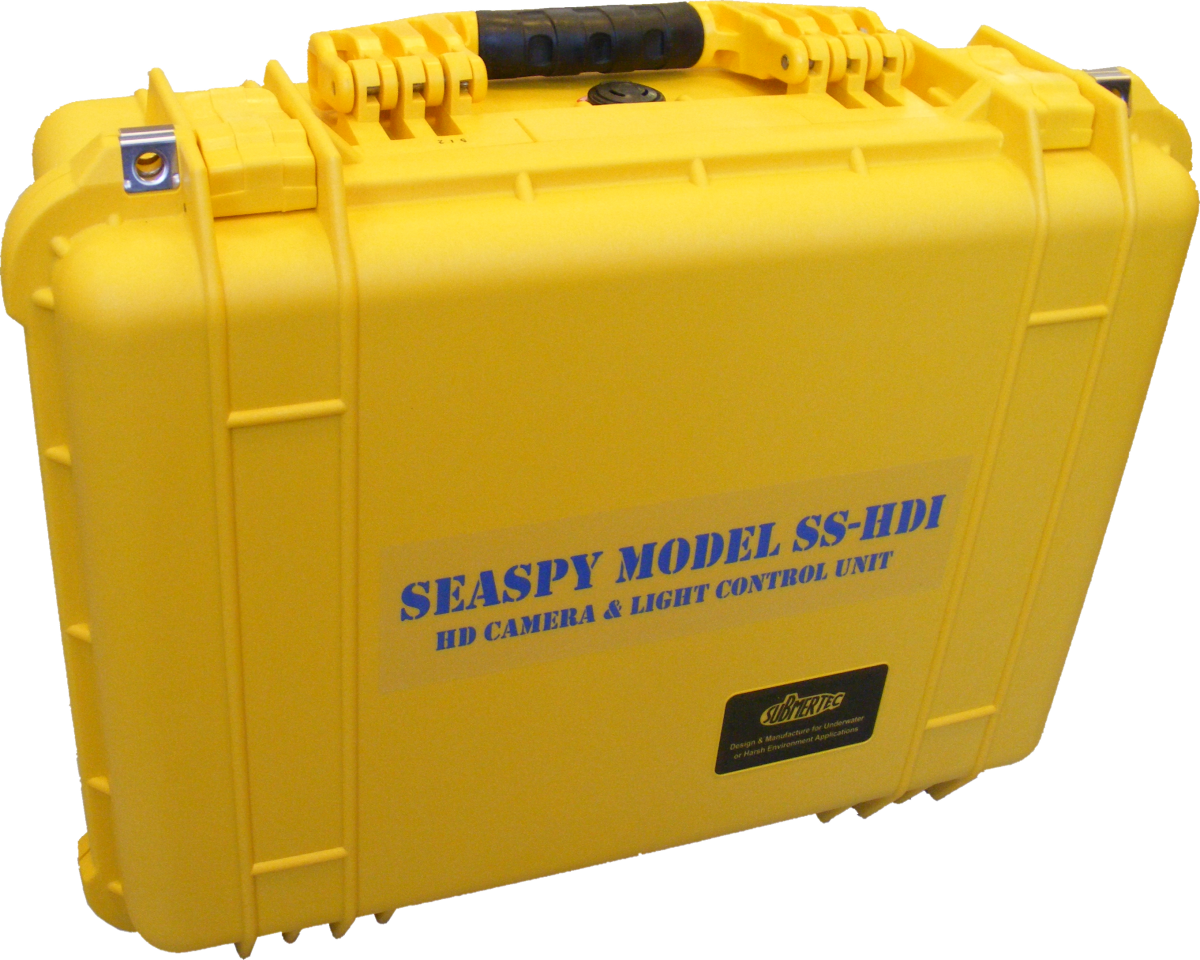

Weighing only 10 Kg and housed in a durable yellow Polypropylene case, this unit which operates from 100 to 240 volts AC, provides control, display, recording of HD video and still photos from all Submertec underwater cameras including the HD Inspection Spyball.
The internal memory can store approximately 100 hours of HD video and hundreds of HD photos. Actual capacity depends on image content, movement etc.
Date, Time and Text can be superimposed on video and photos.
When used with the HDSC Sensor camera, the depth and compass data can also be superimposed on the video.
A small graphic display combined with context sensitive control buttons configures itself to suit the particular camera type detected. This allows camera control and display settings to changed as required.
The menu default language is English but other languages can be added as an option.
Dimensions | 490mm wide, 394mm deep & 190mm high (closed) |
Weight | 10Kg |
Power Supply | 100 to 204 VAC at up to 3 Amps |
Display | 17.3 inch sunlight viewable colour active matrix TFT LCD |
Controls | Context sensitive buttons / graphic display |
DVR Files | Record 1080p MP4 and 1920 x 1080 JPG |
DVR Storage | Internal 256GB + External USB (FAT32 only) |
File Size | Approx 2GB / hour MP4 |
Output | Audio Line Out |
